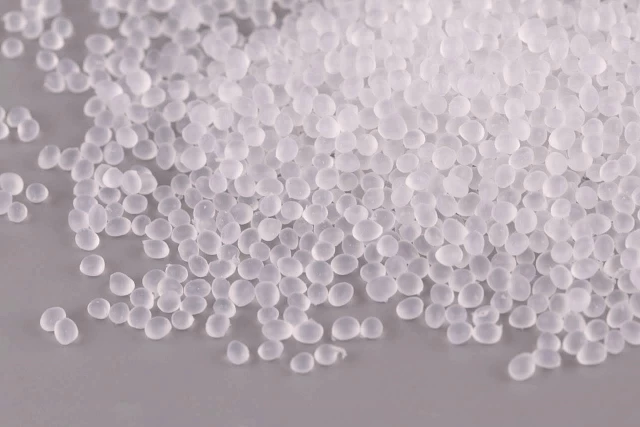

The P Series is a Heat-Resistant Translucent Thermoplastic Elastomer (TPEs) specifically engineered for applications requiring high-temperature cleaning, repeated sterilization, and long-term durability. It is ideal for use in baby care products, medical and hygiene components, and high-safety consumer applications.
Typical Applications of P series
Suitable for applications requiring high-temperature resistance and strict hygiene standards, ensuring both material stability and user safety:
High-Temperature Sterilization Applications
Baby care products requiring hot water or thermal sterilization
Medical & Hygiene Components
Non-implantable medical and sanitary parts
High-Temperature Cleanable Consumer Products
Consumer goods subjected to repeated high-temperature cleaning
Processing Recommendations
(請確認是否保留)Due to the low-flow characteristics of the P Series TPE, it is recommended to apply higher injection pressure and appropriate mold temperature settings during injection molding to ensure complete cavity filling and stable product quality.
This series is particularly suitable for applications prioritizing material safety, heat resistance, and durability, rather than high-speed production or ultra-short cycle times.
Market Positioning
The P Series is positioned as a specialized TPE material for high-heat and safety-critical applications, focusing on long-term stability and product reliability.
It is ideal for products that must withstand repeated high-temperature cleaning while maintaining strict standards for safety and appearance stability.
Summary
The P Series Translucent Thermoplastic Elastomer (TPEs) offers excellent heat resistance, stable structural performance, and high safety standards, meeting the demands of high-temperature cleaning and long-term use.
It provides a reliable material solution for baby care, medical hygiene, and other safety-critical applications.
Specification
| Test Item | Test Method | Unit | Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P25AN | P35AN | P40AN | P45AN | P57AN | P60AN | P70AN | P75AN | P85AN | ||||
| Density | ASTM D792 | g/cm3 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | |
| Hardness | ASTM D2240 | Shore A | 25±3 | 35±3 | 40±3 | 45±3 | 57±3 | 60±3 | 70±3 | 75±3 | 85±4 | |
| Tensile Strength | ASTM D412 | Kg/cm2 | 150 | 150 | 110 | 110 | 110 | 120 | 120 | 130 | 130 | |
| Elongation | ASTM D412 | % | 800 | 650 | 600 | 550 | 730 | 750 | 750 | 750 | 750 | |
| Tear Strength | ASTM D624 Die C | Kg/cm2 | 45 | 40 | 40 | 40 | 13 | 13 | 14 | 16 | 16 | |
| Resistance to High Temperature Aging |
ASTM D573 136°C 7D | % TB/EB | 95/98 | 95/98 | 85/85 | 85/95 | 85/85 | 85/85 | 80/85 | 80/85 | 80/85 | |
| Rebound Elasticity | CNS K1392 | % | 80 | 80 | 80 | 85 | 80 | 80 | 65 | 63 | 63 | |
| Heat Resistance | W-O-M 63°C 500hrs | % TB/EB | 80/85 | 80/85 | 78/82 | 80/85 | 78/82 | 78/82 | 80/85 | 80/85 | 80/85 | |
| Brittle Temperature | ASTM D746 | °C | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 | -60 | |
